TH-1103B - Sleeping Bag Sauna
FAR INFRARED SAUNA WRAP
REGULAR VOLTAGE FULL-ENCLOSURE
INFRARED ENERGY WRAP

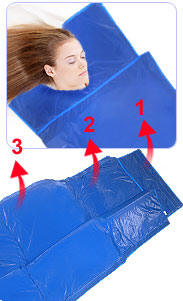

3
Separate Heating Zones
Discontinued
The Infrared Sauna
Wrap TH-1103B is a full-enclosure FIR device, with 3
separately controlled body heating zones, suitable for
professional use at a spa, weight loss center or beauty
salon. Sturdy and made for frequent operation. Provides
a complete sauna experience. The Infrared Sauna Wrap is
also portable and easy to clean, for travel or home use.
The direct heat from the blanket allows for gentle
radiant relaxation of the muscles and controlled
perspiration.
INFRARED SAUNA WRAP TH-1103B
SYSTEM COMPOSITION AND FUNCTIONS
The TH-1103B Infrared SAUNA WRAP is composed of a control box, a thermal blanket, a power cord and 3 connection leads.
Control Box: |
adjusts and controls the temperature
and timer settings of the blanket. |
Power Box:
|
supplies main power to the hand-held
controller. |
Thermal Blanket: |
conducts heating to the body.
Made of PVC,
and a
sponge layer (XLPE cotton) with canvas lining, with
heating elements of carbon fiber |
Power Cord: |
supplies main power to the control box. |
Connection Leads (3):
|
connects the thermal blanket to the control
box. |
|
PANEL DISPLAY AND FUNCTIONS OF THE
KEYS
|
ON/OFF |
Switches the system 'ON' or 'OFF'
|
Heating Zone Key |
Press to select the Heating
Zone for setting (1, 2 or
3). |
|
Temperature Key () |
Press
to increase or press
to decrease the temperature, 1° C for
each press. |
|
Timer Key () |
Press
to increase or press
to decrease the time, 5 minutes for
each press. |
|
Temperature Display
|
Displays the chosen temperature in
degrees Centigrade. |
|
Start/Stop Key |
Press Start/Stop key to start or stop
the device after setting temperature and
timer. |
|
|
INFRARED SAUNA WRAP TH-1103B OPERATION
PROCEDURE
-
Place the Infrared SAUNA WRAP on a flat
surface, such as the bed or floor.
-
Wrap your body in the blanket. If a massage or body oil is used, then it is recommended to first wrap the body in a plastic film or sheet to protect the thermal blanket.
-
Put the control box on a flat surface such as a table and insert the plug into the main power socket.
-
Turn the main power switch on at the back of the control box. The red ‘Power’ indicating light on the control panel will shine. The device has not started work yet.
-
Press the ‘ON/OFF’ key to start setting the temperature and the timer. The Heating Zone key shows Zone 1.
-
Press ‘Timer ’ to set the working time. For each press, the time will increase or decrease by 5 minutes.
-
Press ‘Temperature ’ to set the working temperature. For each press, the temperature will increase or decrease by 1° Centigrade. Set the temperature to your specific requirements.
Zone 1: Upper body and limbs (suggested temperature 46˚ C)
Zone 2: Mid body (suggested temperature 48˚ C)
Zone 3: Lower body and limbs (suggested temperature 50˚ C)
Press ‘Start/Stop’ key. The green indicating light will shine showing that heating has started.
Then press ‘Heating Zone’ key to change the zones. Repeat steps 6, 7, and 8 to set and start zones 2 and 3. When the green indicating light shines, the heating has begun.
When the timer counts down to ‘0’, the signal will sound three times and the digital timer will display ‘0’ showing the heating is over.
After using, pull the plug from the main power socket.
If at any time you need to stop the session, just press the ‘Start/Stop’ key. When the green indicating light goes off, the system will stop working.
Wipe the sweat from the surface of the thermal blanket with a wet towel and dry it by laying it flat on a bed or table for more than 1 hour.
Fold the blanket and store it in a dry and cool place.
Other Suggested Use:
-
When the room temperature is lower than 20 °C, you may preheat the blanket for 10 minutes prior to use.
-
It is suggested that you are well hydrated by drinking a glass of water prior to using.
INFRARED SAUNA WRAP TH-1103B
TECHNICAL SPECIFICATIONS> |
Model
No. |
TH-1103B
|
Input
Volts |
100V~120V 60
HZ 220V~240V 50HZ |
Output
Volts |
AC110V
|
Materials |
PVC, and a sponge
layer (XLPE cotton) with canvas lining, with heating
elements of carbon fiber |
Input
Power |
460W
|
Control
Panel |
Manual
Control |
Heating
Zone |
3
|
Temperature |
30°C ~ 60°C |
Separate Heating
Zone Control |
YES |
Timer |
0~95 minutes |
Folded Size |
180 x 70 cm |
Unfolded Size |
180 x 190 cm |
Net Weight |
7.4kg |
Warranty |
1 year |
|
|
